Item Code: EC5 6.8x1x2 Fiberglass yarn is a fiberglass twisting yarn.Its high strength, corrosion resistance, high temperature resistant, moisture absorption, good electrical insulating performance, used in weaving, casing, mine fuse wire and cable coating layer, the windings of electric machines and appliances insulating material, various machine weaving yarn and other industrial yarn.
Specification: 1) Fiberglass yarn use glass sphere as raw material 2) It is insulation, high intensity,corrosion resistance, high temperature resistance,low water absorption,etc. 3) It is necessary material of all kinds of insulation products and industry yarn. 4) Specification:6tex,12tex,27tex,33tex,normally1-strand,2strand,3strand,4strand,6strand,8strand 5) Other specification can be produced per customers requirments
Technical Parameter
Item code
Density
Single filament diametre /μm
Strand No.*strand
Intensity(N/TEX)
Twist
Twist direction
EC5 6.8x1x2
13.6
5
6.8×2
0.61
110
S
Technical Parameter

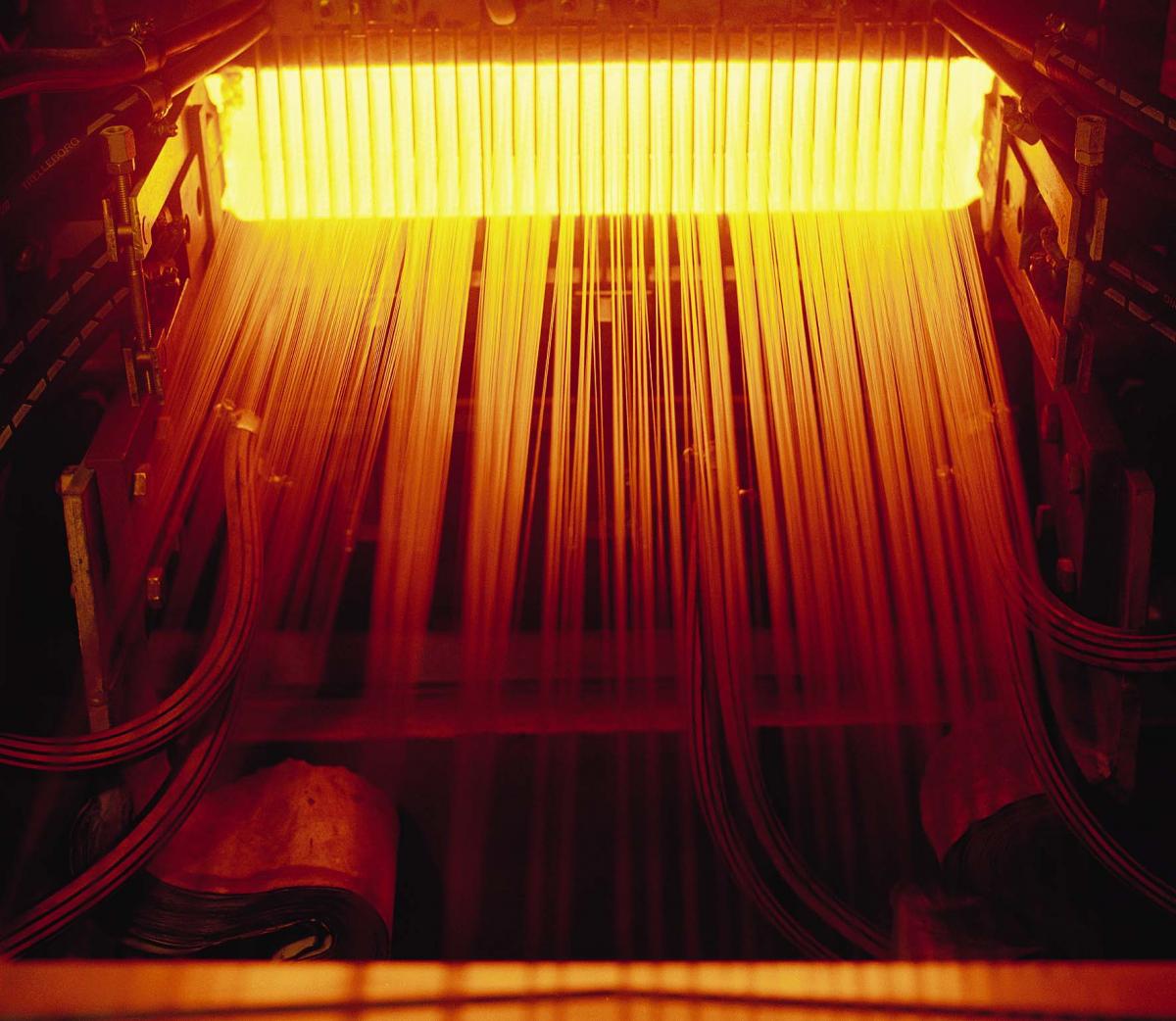

EC5 FIBERGLASS YARN PRODUCTION LINE
EC5 FIBERGLASS YARN PACKING WAY EC5 FIBERGLASS YARN LOADING
